为了便于开发，我做了一块扩展板子：

https://blog.csdn.net/x1131230123/article/details/108772807

扩展板有一些常用器件，这样开发MSP430 F5529程序的时候，就不用杜邦线连接了。当然也可以选择杜邦线连接器件，效果都一样。

Traffic light simulator. Draw a traffic intersection on the OLED display. Have cars, pedestrians, and

bicycles randomly move across the display. When the cars approach the intersection, display the traffic

light signals in 2 directions. If a pedestrian wants to cross the street, change the stoplight and have the

cars stop.

O

LED 接线

c
//OLED----MSP430
//VCC-----3.3V
//GND-----GND
//D0------P3.2
//D1------P3.0
//RES-----P2.0
//DC------P2.2
//CS------P8.1

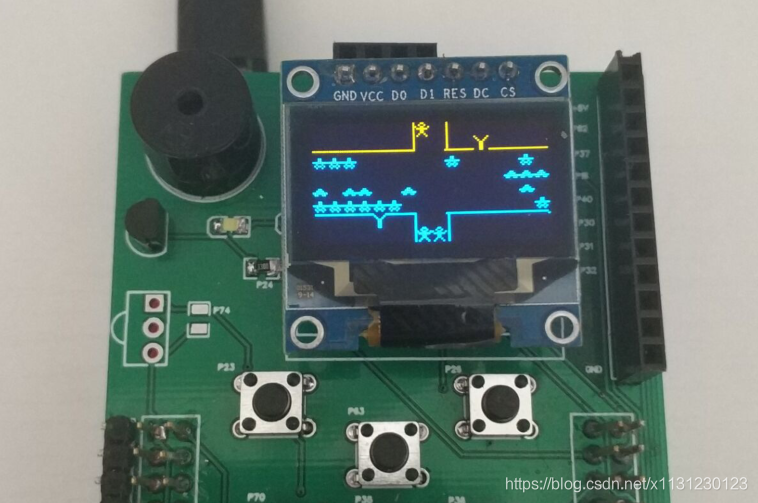

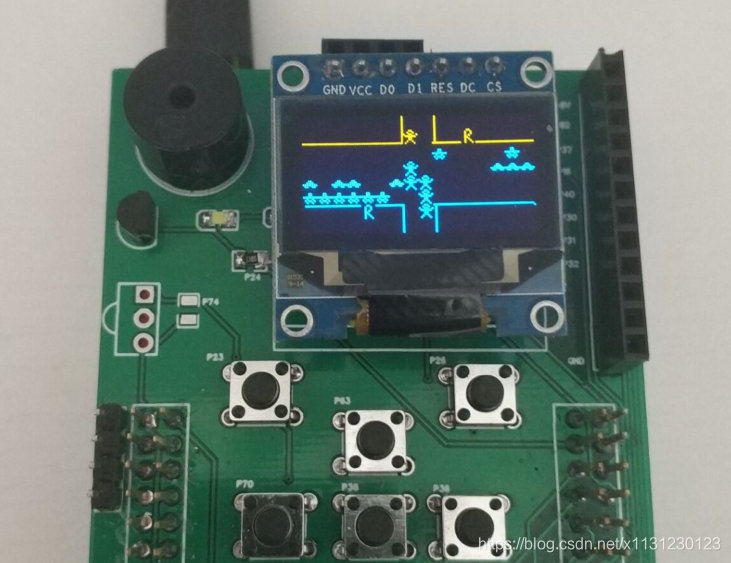

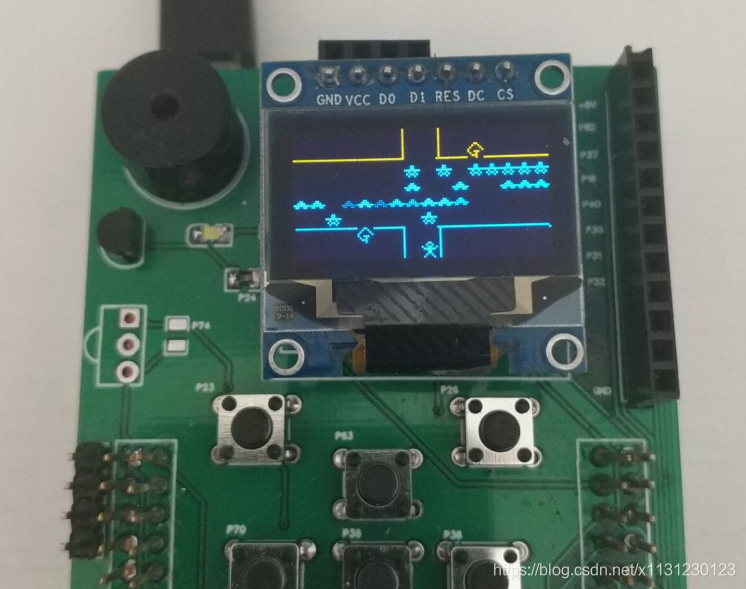

随机生成车辆和人物，动画播放效果。

代码：

https://github.com/xddun/blog_code_search
