使用Docker快速搭建Mosquitto MQTT代理服务器（支持SSL加密）

本教程将指导您通过Docker容器快速部署支持WebSocket和SSL加密的Mosquitto MQTT代理服务器，适用于物联网项目、智能家居等场景。

---

一、环境准备

适用系统

• Ubuntu/Debian
• Raspberry Pi OS
• WSL2（Windows子系统）
• 其他基于Debian的Linux发行版

💡 非Debian系系统需调整安装命令

---

二、安装Docker引擎

bash
# 使用官方脚本安装
curl -fsSL https://get.docker.com | sh

# 验证安装
sudo docker run hello-world

最新安装指南

---

三、项目目录结构

bash
mkdir -p mqtt5/{config,data,log} && cd mqtt5

mqtt5/
├── config/     # 配置文件
├── data/       # 持久化数据
└── log/        # 运行日志

---

四、Mosquitto配置

1. 创建配置文件 config/mosquitto.conf

ini
allow_anonymous true
listener 1883
listener 9001
protocol websockets
persistence true
password_file /mosquitto/config/pwfile
persistence_file mosquitto.db
persistence_location /mosquitto/data/

​1883 端口：适用于传统的 MQTT 客户端，使用标准的 MQTT 协议。

​9001 端口：适用于 WebSocket 客户端，使用 MQTT over WebSocket 协议。

2. 创建密码文件

bash
touch config/pwfile

---

五、Docker部署

基础版docker-compose.yml

yaml
version: "3.7"
services:
  # mqtt5 eclipse-mosquitto
  mqtt5:
    image: eclipse-mosquitto
    container_name: mqtt5
    ports:
      - "9000:1883" #default mqtt port
      - "9001:9001" #default mqtt port for websockets
    volumes:
      - ./config:/mosquitto/config:rw
      - ./data:/mosquitto/data:rw
      - ./log:/mosquitto/log:rw
    restart: unless-stopped

# volumes for mapping data,config and log
volumes:
  config:
  data:
  log:

networks:
  default:
    name: mqtt5-network

启动服务

bash
sudo docker-compose -p mqtt5 up -d

---

六、用户管理

bash
# 进入容器
sudo docker exec -it mqtt5 sh

# 创建用户（首次添加使用-c参数）
mosquitto_passwd -c /mosquitto/config/pwfile user1

# 添加更多用户
mosquitto_passwd /mosquitto/config/pwfile user2

# 删除用户
mosquitto_passwd -D /mosquitto/config/pwfile user2

下面是指令含义：

mosquitto_passwd is a tool for managing password files for mosquitto.

Usage: mosquitto_passwd [-H sha512 | -H sha512-pbkdf2] [-c | -D] passwordfile username
       mosquitto_passwd [-H sha512 | -H sha512-pbkdf2] [-c] -b passwordfile username password
       mosquitto_passwd -U passwordfile
 -b : run in batch mode to allow passing passwords on the command line.
 -c : create a new password file. This will overwrite existing files.
 -D : delete the username rather than adding/updating its password.
 -H : specify the hashing algorithm. Defaults to sha512-pbkdf2, which is recommended.
      Mosquitto 1.6 and earlier defaulted to sha512.
 -U : update a plain text password file to use hashed passwords

重启docker容器让设置的用户生效：

sudo docker restart mqtt5

---

七、进阶配置：SSL加密（Caddy Server）

1. 准备目录

bash
mkdir {caddy_data,caddy_config}

2. DNS配置

bash
# 创建A记录指向服务器IP
mqtt.yourdomain.com A 123.45.67.89

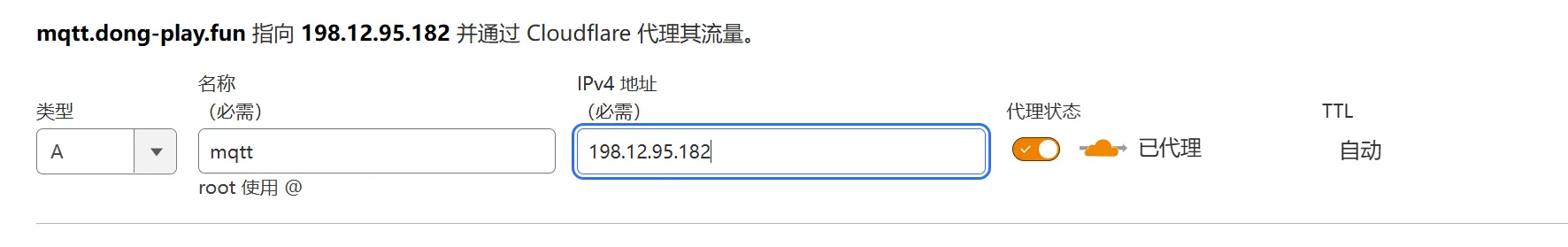

在cf上这样：

3. Caddyfile配置

vim Caddyfile

mqtt.dong-play.fun {
    reverse_proxy /ws/* http://mqtt5:9001 {
        # 确保 WebSocket 连接被正确处理
        header_up X-Forwarded-Proto "https"
        header_up Host {host}
        header_up X-Real-IP {remote}
        header_up X-Forwarded-For {remote}
    }
}

Caddy 被用作 Mosquitto Websocket 的反向代理，并自动为 mqtt.dong-play.fun 生成 SSL/TLS 证书。

增强版docker-compose.yml

yaml
version: "3.7"
services:
  # mqtt5 eclipse-mosquitto
  mqtt5:
    image: eclipse-mosquitto
    container_name: mqtt5
    ports:
      - "9000:1883" # default mqtt port
      - "9001:9001" # default mqtt port for websockets
    volumes:
      - ./config:/mosquitto/config:rw
      - ./data:/mosquitto/data:rw
      - ./log:/mosquitto/log:rw
    networks:
      - caddy-mqtt
    restart: unless-stopped

  # caddy for HTTPS and reverse-proxy
  caddy:
    image: caddy:latest
    container_name: caddy
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
      - "443:443/udp"
    volumes:
      - ./Caddyfile:/etc/caddy/Caddyfile
      - ./caddy_data:/data
      - ./caddy_config:/config
    networks:
      - caddy-mqtt

# volumes for mapping data,config and log
volumes:
  config:
  data:
  log:
  caddy_data:
  caddy_config:

networks:
  caddy-mqtt:
    name: caddy-mqtt

# MQTT Connection URL would be
# WSS => Websocket Secure with SSL
wss://mqtt.dong-play.fun:443

---

八、测试验证

安装客户端：

sudo apt install mosquitto-clients -y

订阅消息

bash
# Without authentication 匿名访问，执行下面这句后会一直等待消息
mosquitto_sub -v -t 'hello/topic' -h localhost -p 9000

# With authentication
mosquitto_sub -v -t 'hello/topic' -u user1 -P <password>  -h localhost -p 9000

# Alternate way in url format
# Format => mqtt(s)://[username[:password]@]host[:port]/topic
mosquitto_sub -v -L mqtt://user1:abc123@localhost/test/topic

发布消息

bash
# Without authentication匿名访问，执行下面这句后就是发布了消息，在订阅哪里会收到消息
mosquitto_pub -t 'hello/topic' -m 'hello MQTT' -h localhost -p 9000

# 用IP访问，在主题上发布消息
mosquitto_pub -t 'hello/topic' -m 'hello MQTT' -h 198.12.95.182 -p 9000

# 用域名访问，在主题上发布消息

# With authentication
mosquitto_pub -t 'hello/topic' -m 'hello MQTT' -u user1 -P <password>

# Alternate way in url format
# Format => mqtt(s)://[username[:password]@]host[:port]/topic
mosquitto_pub -L mqtt://user1:abc123@localhost/test/topic -m 'hello MQTT'

URL格式测试

bash
mosquitto_sub -L mqtts://user1:[email protected]/test/topic

---

九、可视化客户端推荐

1. MQTTX桌面客户端

官网下载

2. Web客户端部署

bash
sudo docker run -d --name mqttx-web -p 8080:80 emqx/mqttx-web

访问 http://localhost:8080

3. Python

pip install paho-mqtt

ws服务：

import time
import paho.mqtt.client as mqtt

# 定义回调函数，当连接成功时调用
def on_connect(client, userdata, flags, rc):
    if rc == 0:
        print("连接成功！")
        # 订阅主题
        client.subscribe("test/topic")
    else:
        print(f"连接失败，错误码：{rc}")

# 定义回调函数，当收到消息时调用
def on_message(client, userdata, msg):
    print(f"收到消息: {msg.payload.decode()} 来自主题: {msg.topic}")

# 创建 MQTT 客户端实例
client = mqtt.Client(transport="websockets")  # 使用 WebSocket 传输

# 设置回调函数
client.on_connect = on_connect
client.on_message = on_message

# 连接到 Mosquitto 服务器
client.connect("198.12.95.182", 9001, 60)  # 9001 是 WebSocket 端口

# 启动循环以保持连接
client.loop_start()

# 发布消息
try:
    while True:
        client.publish("hello/topic", "Hello from Python over WebSocket!")
        print("消息已发布")
        time.sleep(2)  # 每 2 秒发布一次消息
except KeyboardInterrupt:
    print("程序已停止")

# 停止循环并断开连接
client.loop_stop()
client.disconnect()

---

常见问题解答

Q：为什么需要设置allow_anonymous为false？
A：出于安全考虑禁用匿名访问，必须通过用户名/密码认证

Q：如何查看容器日志？

bash
sudo docker logs mqtt5 --tail 100

Q：SSL证书自动续期如何实现？
Caddy Server会自动处理Let's Encrypt证书的获取和续期

---
